Workstation cranes
    Publish time 2018-06-01 17:54

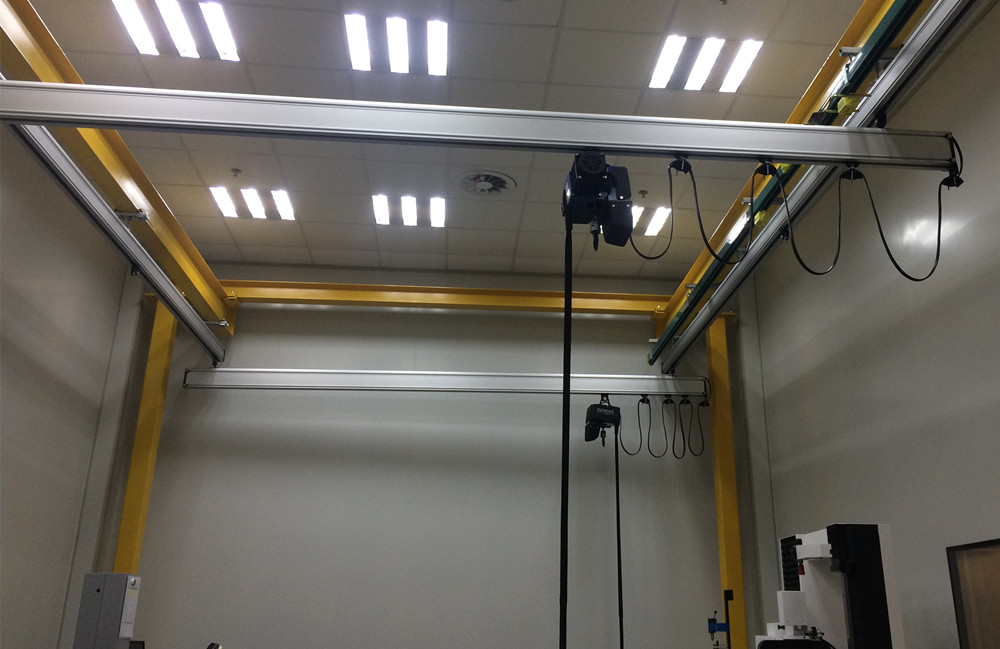

Workstation cranes

Workstation cranes offer high productive working environments the efficient and reliable overhead material handling.


The low dead weight allows the system to mount directly to the building structure. Finally the smooth running trolley characteristics  in conjunction with the light weight provide the confidence that heavy, awkward and sometimes delicate parts can be precisely, reliably, and safely positioned.

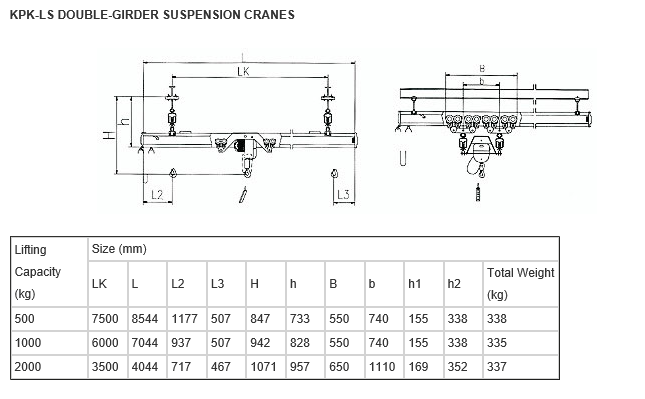

Occasionally loads exceed the limits of a single girder crane or require additional headroom in close quarters. The KBK Crane Construction Kit has the versatility to accommodate such requirements due to its low dead weight and optimal dimensional characteristics. The exclusive pend
ent suspension design absorbs horizontal forces caused by starting and stopping, traditionally induced into the building support structure.
