Electric wire rope hoist
    Publish time 2018-06-04 10:00

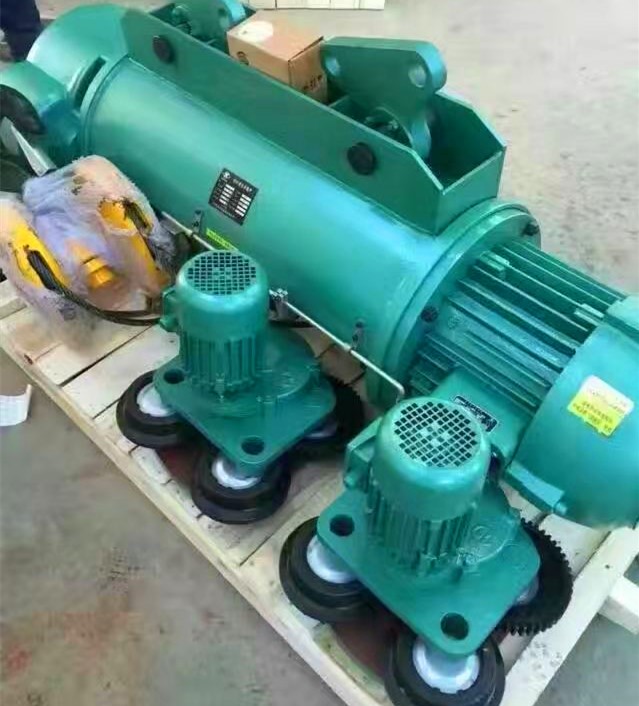

Electric wire rope hoist

Wire rope electric hoist is a kind of special lifting equipment, mounted on single beam, bridge, gantry and jib cranes, widely used for lifting objects. It has the advantages of small volume, light weight, simple operation, easy to use, widely used in industrial and mining enterprises, storage terminals and other places. Lifting capacity is generally 250kg-50t lifting height of 3 to 30 meters.CD/MD type and European type can fit your different demands.





Model

CD/MD

Capacity(t)

0.5

1

2

3

5

Lifting height(m)

6 9 12 18

6 9 12 18 24 30

6 9 12 18 24 30

6 9 12 18 24 30

6 9 12 18 24 30

Lifting speed(m/min)

8  8/0.8

8  8/0.8

8  8/0.8

8  8/0.8

8  8/0.8

travelling speed(m/min)

20

20

20

20

20

Wire rope dia(mm)

5

7.4

11

13

14

Power supply

3P/1P    220V-690V    50/60HZ

Control voltage

24V/36V/48V
