enclosed conductor rail

enclosed conductor rail

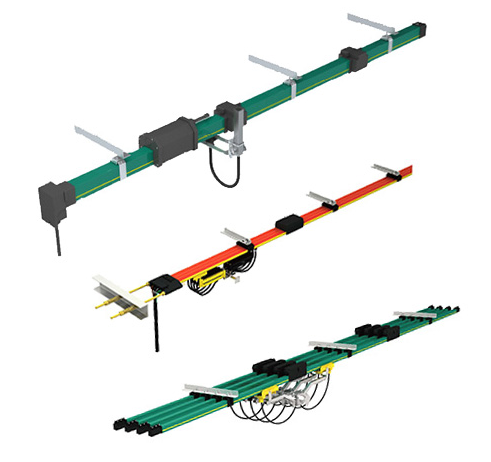

 Enclosed conductor rail  System is a compact, reliable and safe current supply system for cranes, hoists, monorail systems, conveyor belts etc.

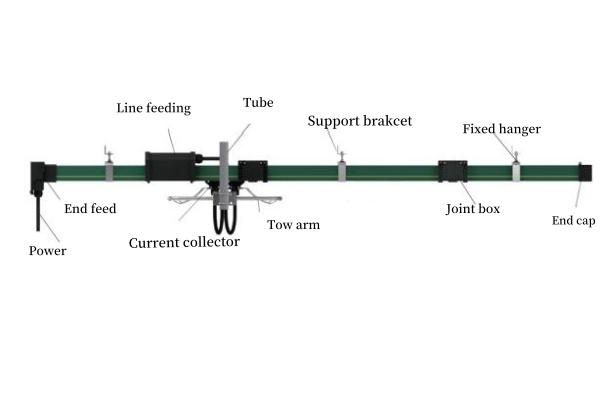

  The basic design of HFP Conductor Rail System is a PVC housing which is prepared to accommodate copper conductors, and current collector run in the PVC housing to get the power and feed it to the equipment.  HFP series Conductor Rail can be 4poles, 7 poles and 10poles with current capacity from 35A to 240A.
Technical Data
Electrical properties:
Max.current240A
Max.voltage660V
Dielectric strength 30-40KV/mm
Spec.resistance5 × 1015 Ohm × cm
Surface resistivity  1013 Ohm × cm
Leakage resistanceCTI600-2.7

Mechanical properties:
Flexible strength    75N/mm2  ± 10%
Tensile strength     40N/mm2  ± 10%
Temperature range:
Standard Housing  -20℃ up to +70℃
High Temp.Housing  -10℃ up to +115℃
 Combustibility:
Flame retardant   B1 CLASS
Self extinguishingCLASS  B1   no flaming particles, self-extinguishing
