double beam wire rope hoist
    Publish time 2023-11-23 15:40

Double beam low headroom wire rope hoist

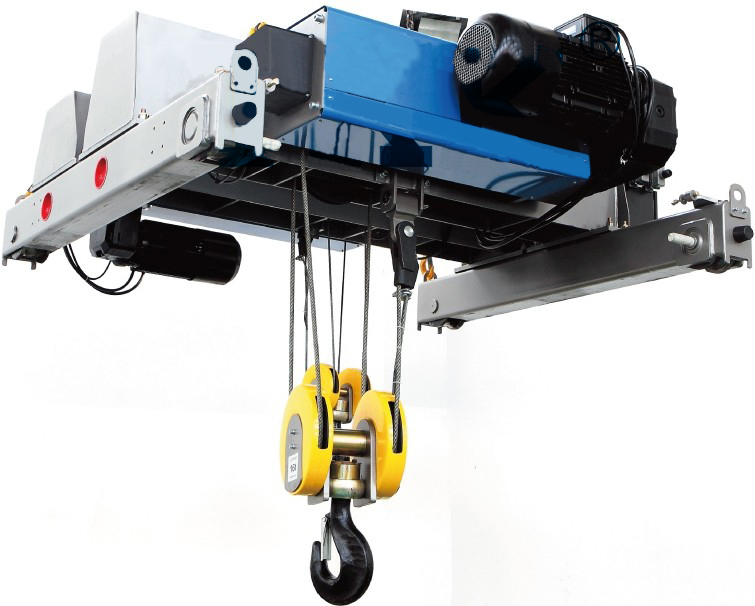

double beam wire rope hoist
Double beam electric wire rope  hoist　
MODEL                                                                                                     DNW
5t* 9m10t* 9m20t* 9m32t *9m50t* 9m
Capacity(ton)510203250
Lifting height(m)99999
Working Group (FEM/ISO)Hoisting 2M/M52M/M51AM/M42M/M52M/M5
Operation 2M/M52M/M52M/M52M/M52M/M5
SpeedLifting speed(m/min)0.8/5.0     Double speed0.8/5.0     Double speed4.0/0.6    Double speed3.3/0.8    Double speed0 ~ 3.2    Frequency conversion
Trolley speed(m/min)5-20   Frequency conversion5-20   Frequency conversion5-20   Frequency conversion5-20   Frequency conversion5-20   Frequency conversion
MotorMotor power(kw)6.1/1   40% ED9.5/1.5   40% ED16/2.6   40% ED20/5   40% ED38   40% ED
Trolley power(kw)2*0.31        60% ED2*0.31        60% ED2*0.55        60% ED2*1.1        60% ED2*1.5        60% ED
PowerMain power220v-690v/ 50HZ(60hz)220v-690v/ 50HZ(60hz)220v-690v/ 50HZ(60hz)220v-690v/ 50HZ(60hz)220v-690v/ 50HZ(60hz)
Control voltage24v/36v/48V /110v24v/36v/48V /110v24v/36v/48V /110v24v/36v/48V /110v24v/36v/48V /110v
Protection gradeMotorIP 54IP 54IP 54IP 54IP 54
electric cabinetIP 55IP 55IP 55IP 55IP 55
Motor insulation gradeF F F F F
Working temperature-10 ~ 40 ℃-10 ~ 40 ℃-10 ~ 40 ℃-10 ~ 40 ℃-10 ~ 40 ℃
Environmental humidityNormalNormalNormalNormalNormal
Installation structure Double and  box beam Double and  box beam Double and  box beam Double and  box beam Double and  box beam
Trolley span1400mm1400mm2000mm2400mm2400mm
 width of wheel rim70mm70mm90mm90mm90mm
