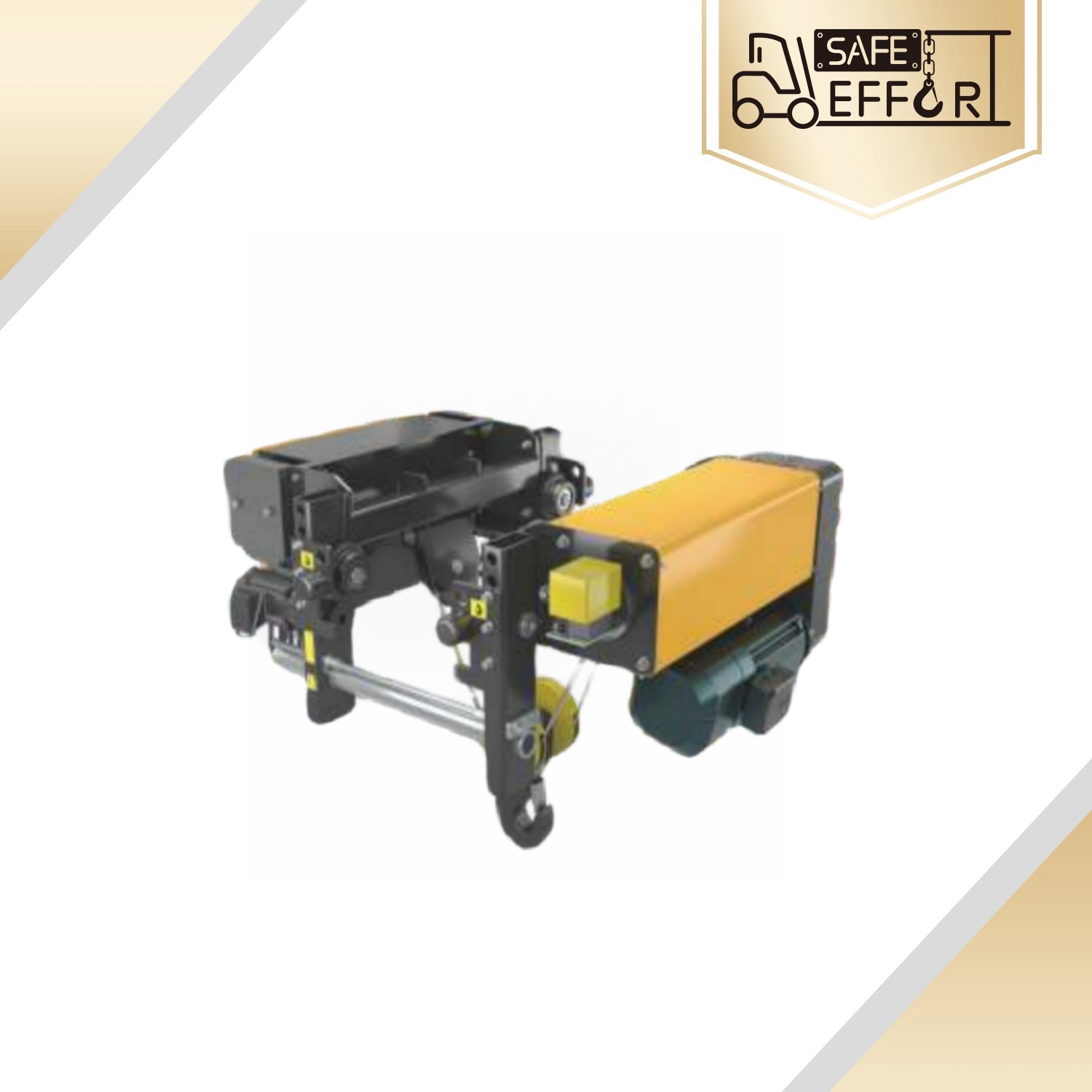

5ton wire rope hoist
    Publish time 2018-11-21 10:50

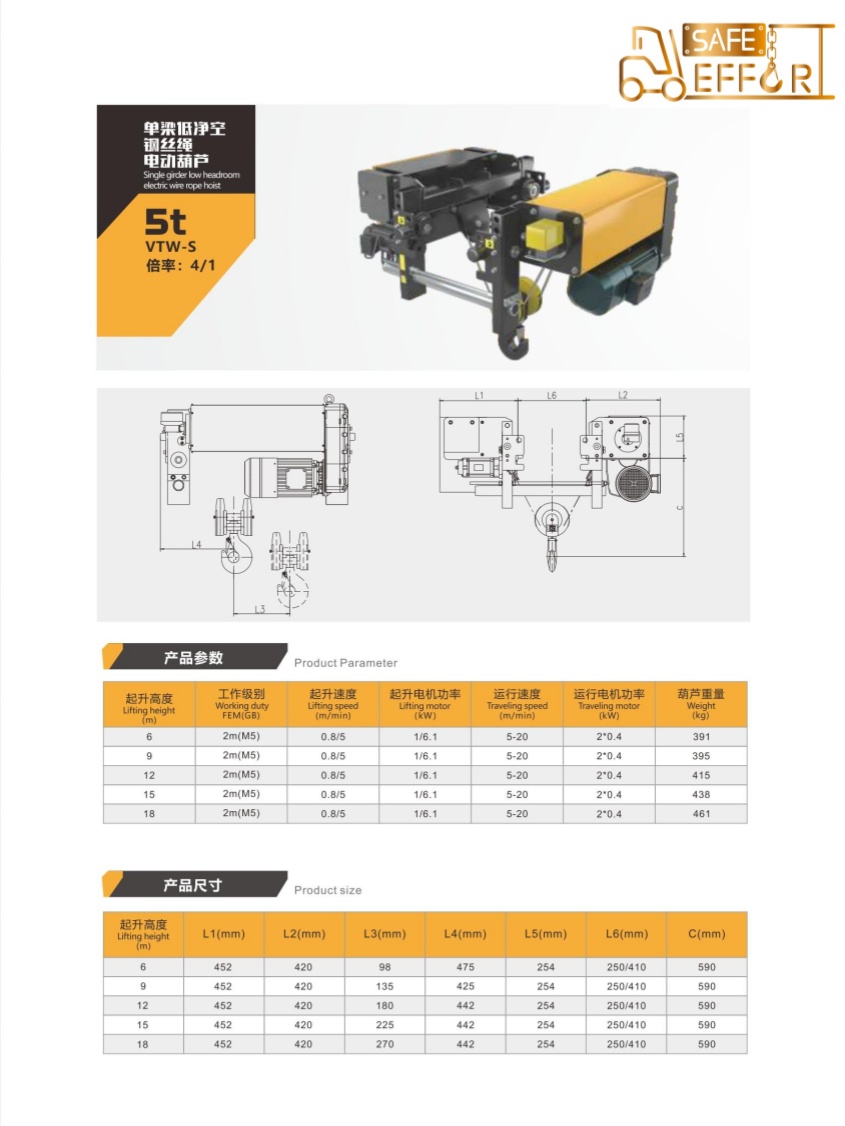

Single bridge wire rope hoist with capacity of 3.2 ton to 50ton. Lifting height ranges from 6M to 20M.

5ton wire rope hoist

Features

  •  low-head room /space saving design structure

  •  step-less motor, high efficiency

  •  smooth travelling trolley controlled by step-less motor

  •  Case-harden gear reducer with light weight

  •    IP55 and H insulation

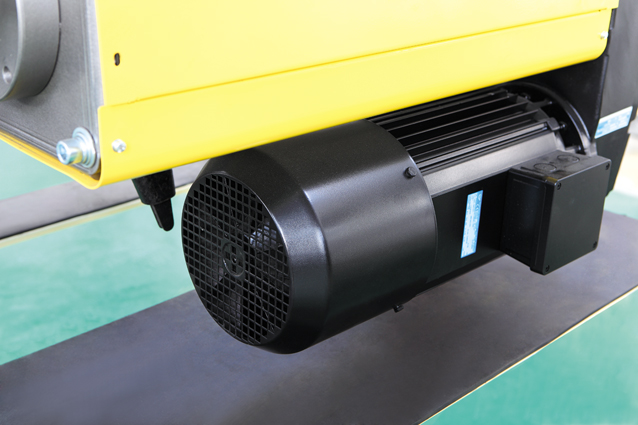

  •     Heavy duty motor, 60% ED rating

  •  Reliable and anti-dust electromagnetic disk break

  •  maintenance-free

  with adjustable hinge trolley frame

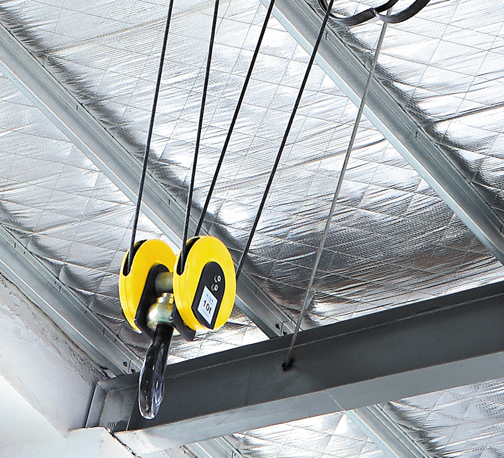

  •   DIN standard and Class T bottom hook with material of 34Cr Mo4

  •  Integral rope guide prevents loosening of rope

  • 2160N/㎜2 heavy duty galvanized wire rope

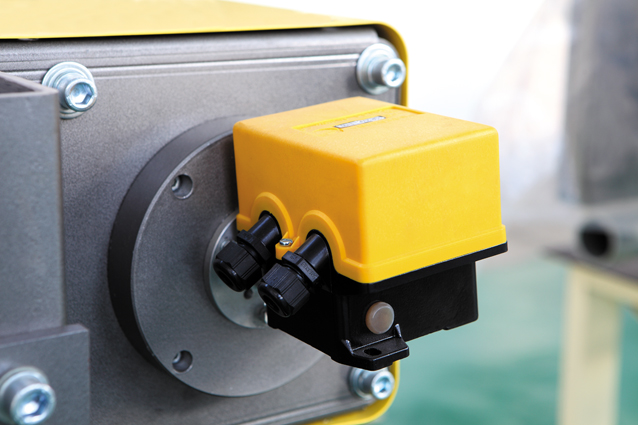

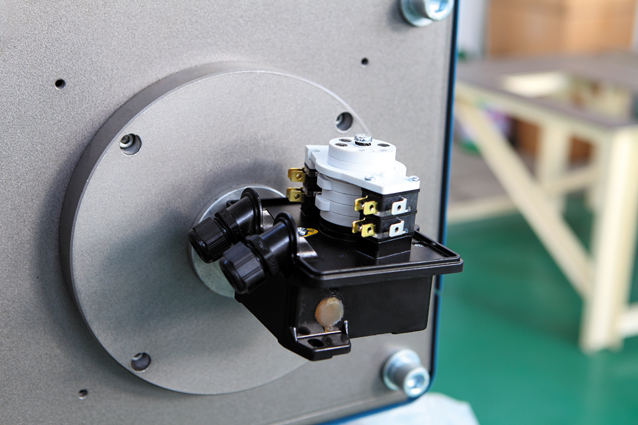

  •  4-option adjustable rotation lifting limit switch

  •  LCD touch screen security monitor

  •  With anti-fall protection trolley and geared motor
