Double-track power trolley (girder trolley)
    Publish time 2018-06-04 10:05

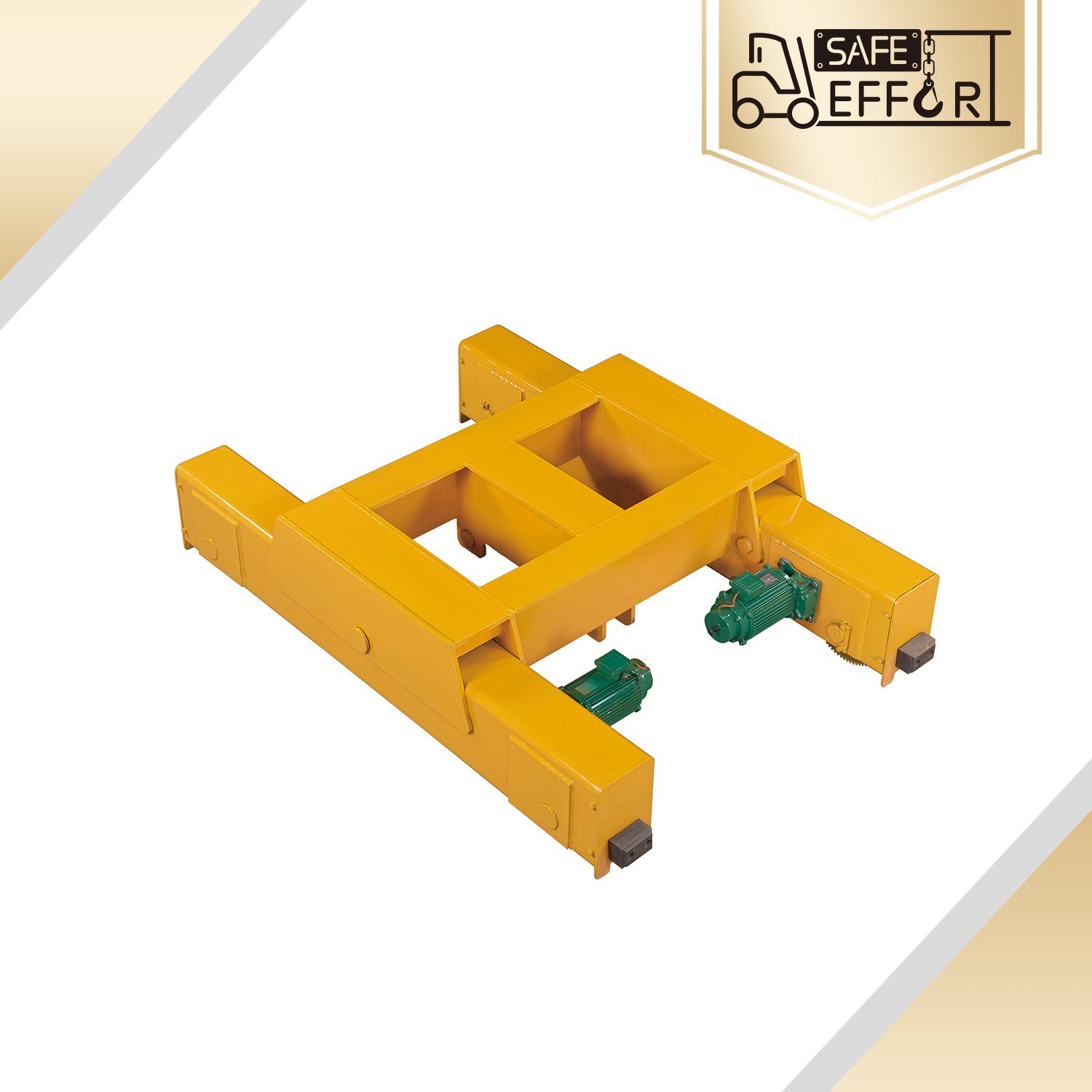

Double-track power trolley  (girder trolley)

Double-track power trolley (girder trolley)
Double track  power trolley
ModelWidth (M)Length(M)Working Group
Wheel teeth
（Z）		wheel dia (mm)Power (Kw)Capacity (Ton)Moving speed
≈m/min
PL0.8—0.60.80.6M3511200.37×2≤2—319
PL1.0—1.0113621600.37×2≤521
PG1.0—1.211.23621600.37×2≤521
PL1.2—1.21.21.24592000.6×2≤1021
PG1.4—1.21.21.44592000.6×2≤1021
PL1.2—1.51.21.55562501.1×2≤1619
PG1.2—1.61.21.65562501.1×2≤1619
PL1.4—1.81.41.86573001.5×2≤2519
PG1.6—2.01.626573001.5×2≤2519
PL for chain hoist，PG for wire rope hoist
