Scale
    Publish time 2018-06-04 10:10
Scale

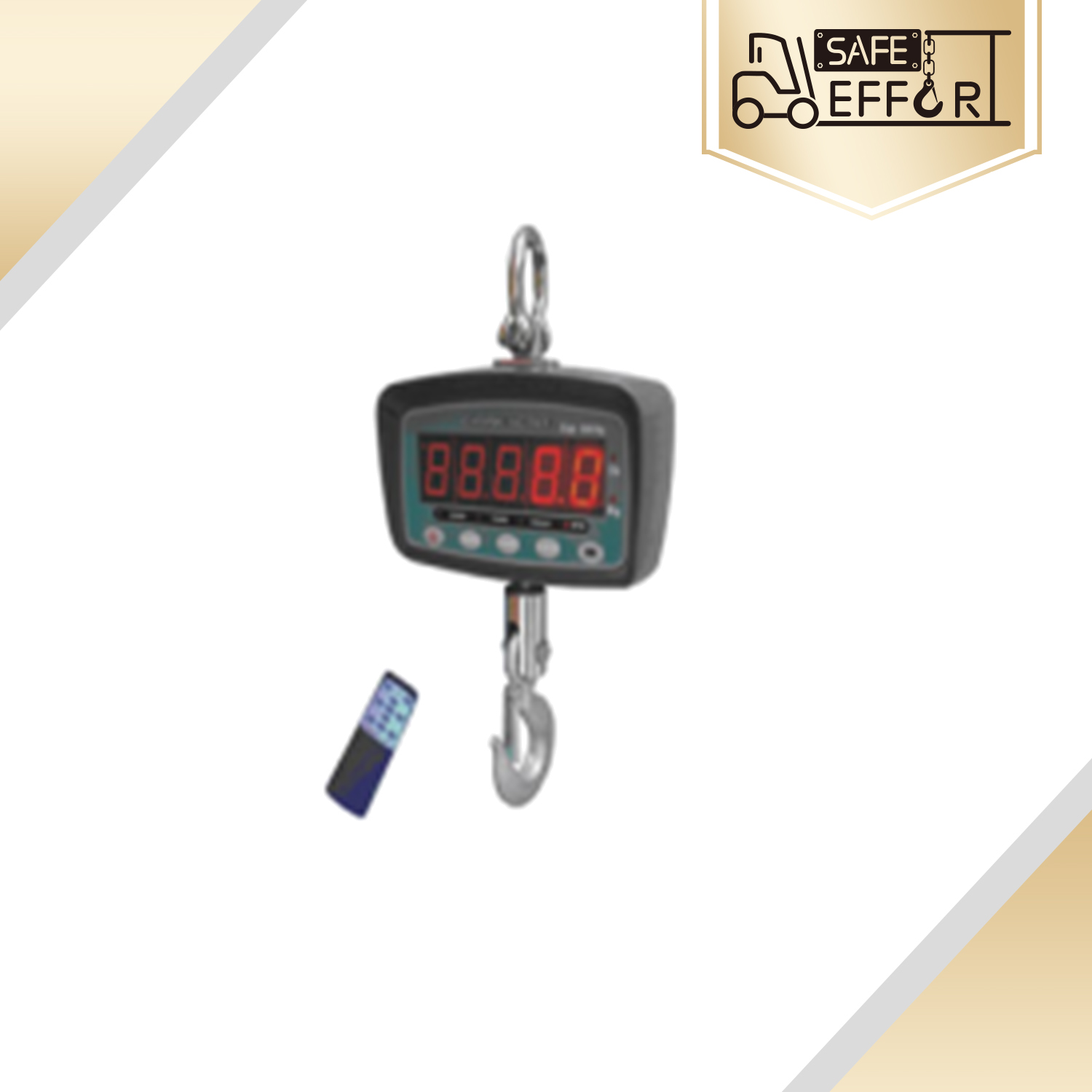

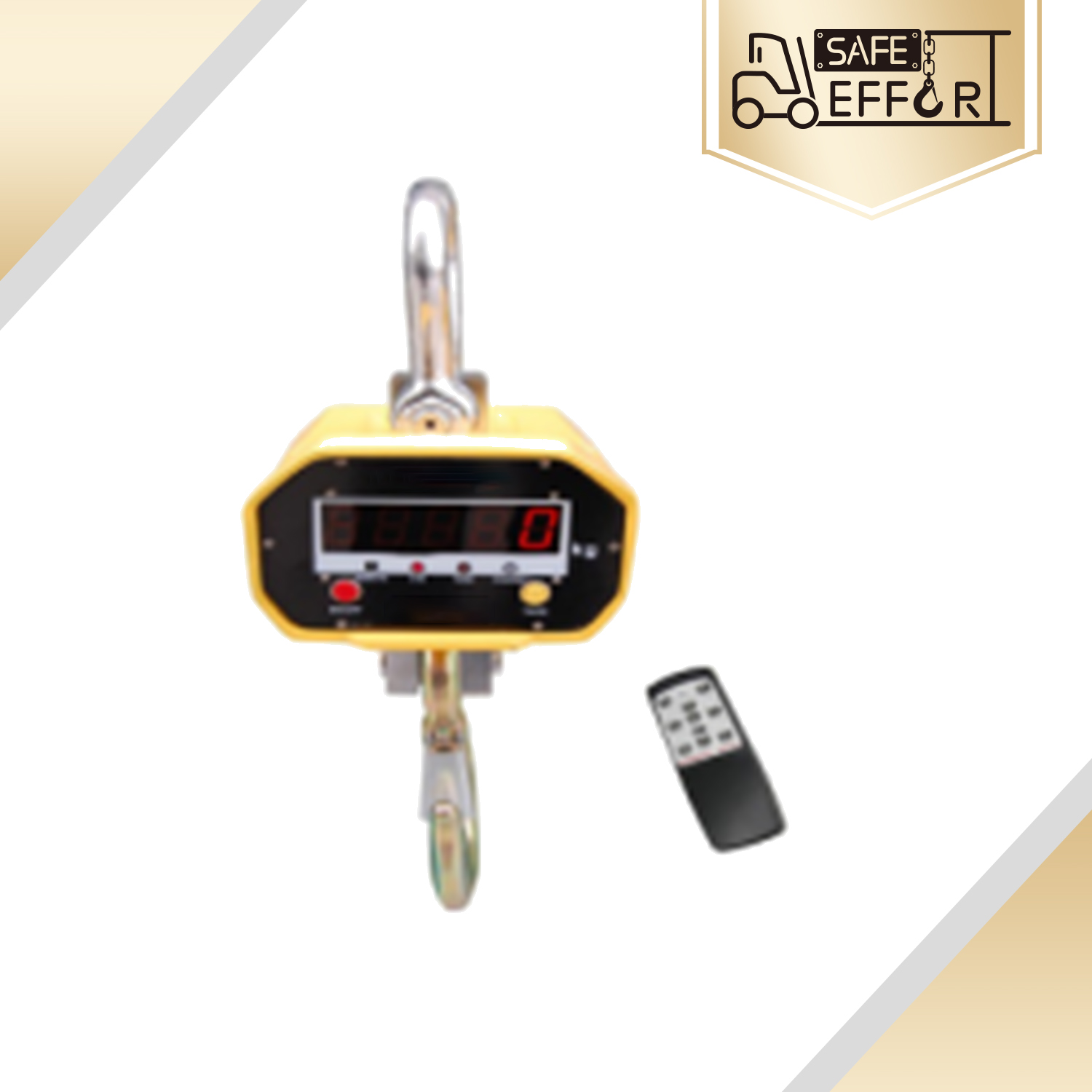

This hanging scale includes a shackle, hook, and mounted LED display all in one easy to use unit. The crane scale is ideal for smaller tension loads where the operator will be close to the hanging scale to view tension measurement. The crane load cell is a precision S-Type which is an accurate reliable weighing solution for a number of tension applications. A small remote control is included with the scale which allows you to call a number of features from a distance. The digital hanging scale is calibrated with fully traceable certified weights and arrives ready for immediate use.


HIGHLIGHTS

•Most competitively priced crane scale

•Shackles and hooks included

•Large 1¼" LED display shows tension load

•Battery powered (rechargeable)

•Comes with remote operation key fob

•Scale uses a precision S-Type load cell

•Calibrated with fully traceable certified weights

•Used in crane and tension applications


INDICATOR FEATURE

Display: bright 1¼" LED lettering with 5 digits
Filtering: Smart digital stabilizing filter
Power: 100 hours of operation from 6VDC 4 amp hr internal battery
Power: Auto sleep when not in use (tension load not present), low battery indication
Power: 110 Volts charger with 9VDC 500 mA power output
Calibrated: digital crane scale calibrated to lbs or kgs (specified on purchase)


REMOTE CONTROL FUNCTION

Hold / Off: turn the tension meter off or hold the currently displayed weight
Tare / Zero: Clear the current weight
Accumulate: Press to accumulate the displayed weight with the weight in memory
Accumulate Clear: Clear the accumulated weight


Model 2T 3T 5T 10T 15T 20T
Max Capacity （kgs) 2000 3000 5000 10000 15000 20000
Min Capacity   (kgs) 20 20 40 100 100 200


Dimensions  (mm)		A 95 95 125 140 225 225
B 260 260 325 325 345 345
C 35 45 55 65 70 85
H 430 460 525 660 855 920
N.W.    ( kg）10.511.516.527.54953
