Wire rope puller
    Publish time 2018-06-04 10:10

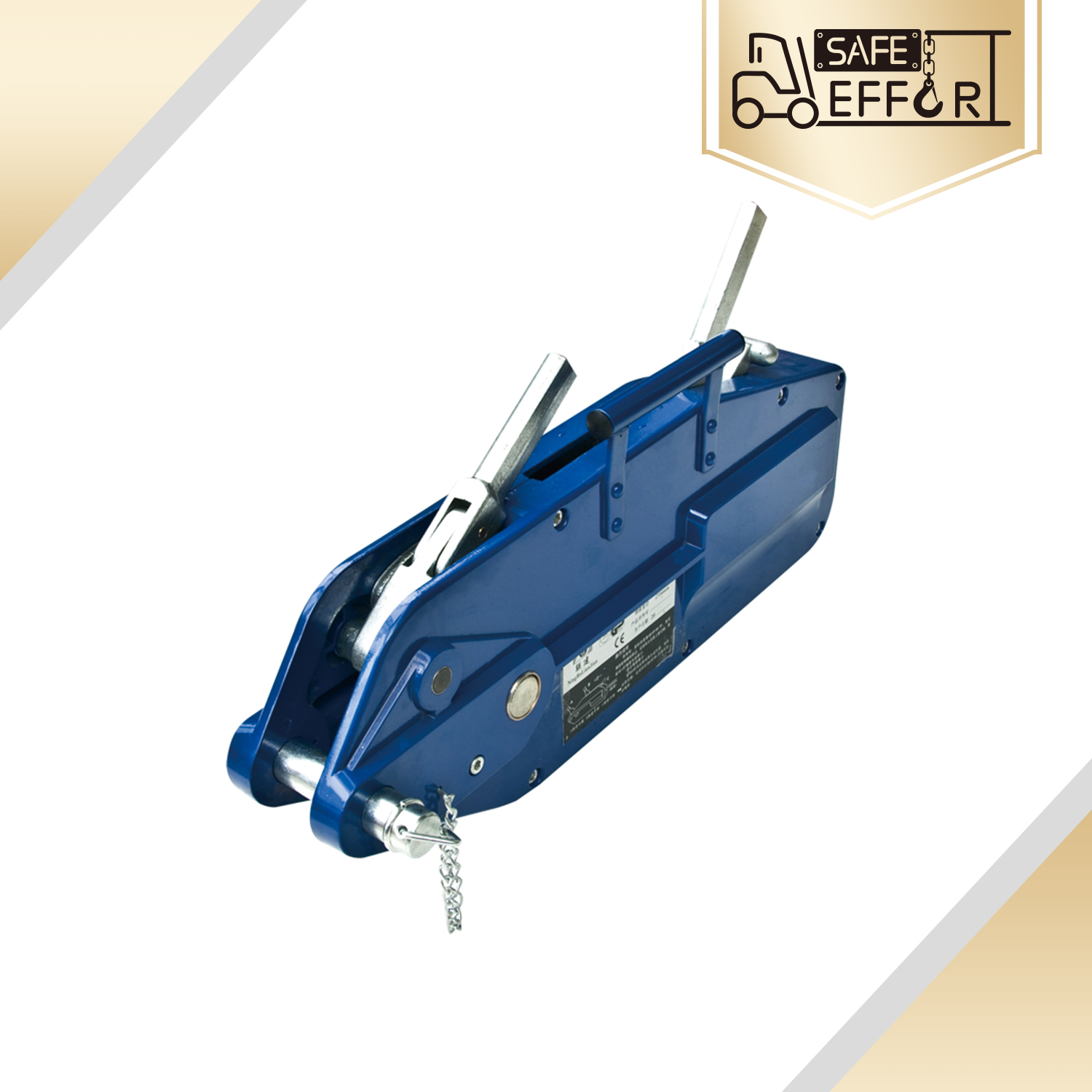

Wire rope puller

Wire rope pulling machines are suitable for pulling, lifting, tensioning and releasing in any direction.They are available in light and compact aluminium or pressed steel construction for applications where aluminium is not recommended.





Model

WRP-A

Lifting capacity(kg)

800

1600

3200

5400

Pulling capacity(kg)

1300

2800

6000

10125

Tested(kg)

1500

3000

6000

10125

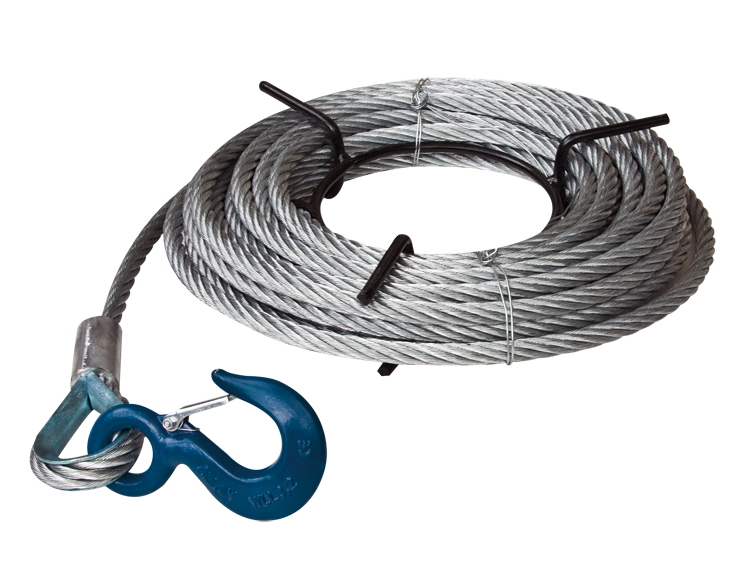

Steel wire rope Dia.(mm)

8.3

11

16

20

Breaking strength(kg)

5430

9680

17200

27000
