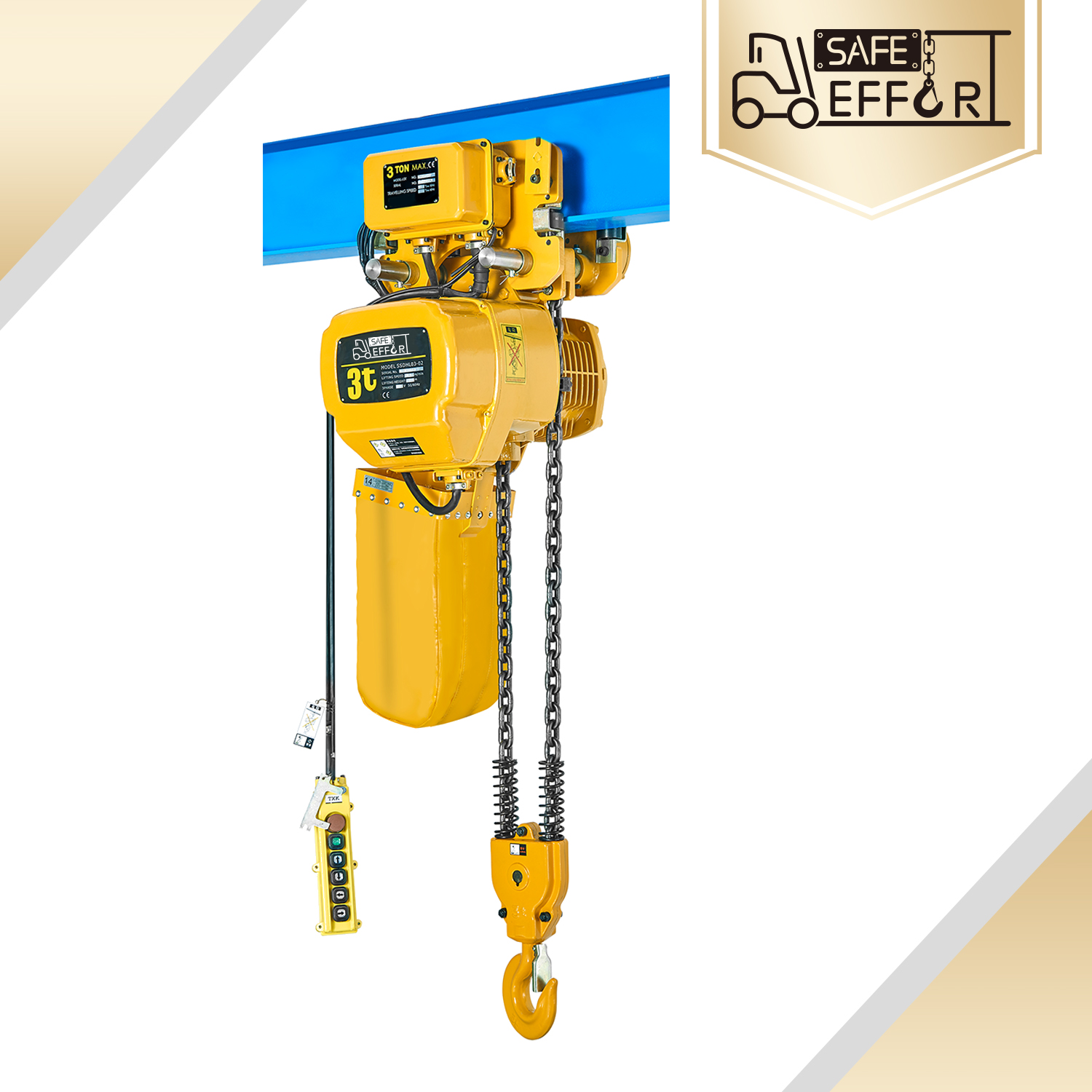

SE series electric chain hoists are equipped with dual lifting and moving speed, which are made of high-strength alloy, consists of beautiful appearance, compact mechanism, small in size and light weight. Besides we use double-geared drive, helical gear drive when it works under fast speed, so that the hoists can drive smoothly with low noise
● Capacities from 250kg to 50 ton are available
● Side magnetic braking device allows instant brake as soon as the electric power cut off
● Upper and lower electrical limit switches are installed to prohibit the chains from exceeding for safety.
● Inverse phase sequence protecting device is special electrical installation which control the circuit not to work in case of wiring error in the power supply
● High quality G80 chain supplied or other imported chains
● Lower hook is ensured by its 360 °rotation and safety tongue piece
● Transformer: 24v,36v,48v transformer device,which is used to prohibit unexpected accidents caused by electric leakage and guarantee the safe use while raining.
● Waterproof push button is applied, which is light and durable
● IP 54/ IP55, M4, F grade
● The length of 3M load chain is standard. Longer length are available (3m to 130m)
● All hoists are CE/ISO certified and comes with instruction manual and Test Certificate.
● Our single phase hoist from 250kg to 1 ton can be manufactured by single phase motor.
| 500kg-25ton Electric Chain Hoist with Hook | ||||||||||||||||
| SEC | 0.5-01 | 01-01 | 1.5-01 | 02-01 | 02-02 | 2.5-01 | 03-01 | 03-02 | 03-03 | 05-02 | 7.5-03 | 10-04 | 15-06 | 20-08 | 25-10 | |
| Capacity | 0.5 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 3 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | |
| Lifting speed (m/min) single speed | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 | 1.8 | 2.7 | 1.8 | 1.4 | 1.3 | |
| Lifting Height (m) | our standard lifting height is 3m, 1-130M is available | |||||||||||||||
| Diameter of Chain (mm) | Φ6.3 | Φ7.0 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ11.2 | Φ11.2 | Φ11.2 | Φ11.2 | |
| Lifting motor | Power(Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 *2 | 3.0*2 | 3.0*2 | 3.0*2 |
| Rotation speed(r/min) | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | |
| Phases | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Voltage(V) | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | 220-690 | |
| Frequency(Hz/s) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
